fi_command_xc.c File Reference

#include "lib/misc.h"
#include "lib/assert.h"
#include "xcode/xcode.h"
#include "fis/fi_command.h"
#include "fis/fi_command_xc.h"

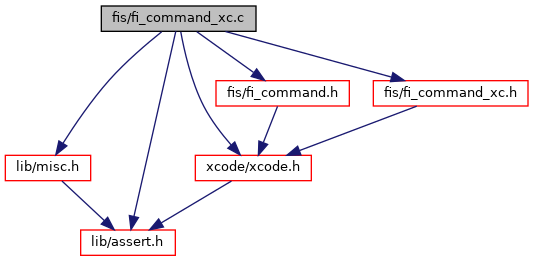

Include dependency graph for fi_command_xc.c:

Go to the source code of this file.

Data Structures
struct	_m0_fi_command_req_s
struct	_m0_fi_command_rep_s

Functions
	M0_BASSERT (offsetof(struct _m0_fi_command_req_s, _child[0])==offsetof(struct m0_xcode_type, xct_child[0]))
	M0_BASSERT (offsetof(struct _m0_fi_command_rep_s, _child[0])==offsetof(struct m0_xcode_type, xct_child[0]))
	M0_BASSERT (sizeof(struct m0_fi_command_req)==48U)
	M0_BASSERT (sizeof((struct m0_fi_command_req *) 0) ->fcr_func==16U)
	M0_BASSERT (offsetof(struct m0_fi_command_req, fcr_func)==0U)
	M0_BASSERT (offsetof(struct m0_fi_command_req, fcr_tag)==16U)
	M0_BASSERT (offsetof(struct m0_fi_command_req, fcr_disp)==32U)
	M0_BASSERT (offsetof(struct m0_fi_command_req, fcr_num1)==36U)
	M0_BASSERT (offsetof(struct m0_fi_command_req, fcr_num2)==40U)
	M0_BASSERT (sizeof(struct m0_fi_command_rep)==4U)
	M0_BASSERT (sizeof((struct m0_fi_command_rep *) 0) ->fcp_rc==4U)
	M0_BASSERT (offsetof(struct m0_fi_command_rep, fcp_rc)==0U)
M0_INTERNAL void	m0_xc_m0_fi_command_req_struct_init (void)
M0_INTERNAL void	m0_xc_m0_fi_command_rep_struct_init (void)
M0_INTERNAL void	m0_xc_fis_fi_command_init (void)
M0_INTERNAL void	m0_xc_fis_fi_command_fini (void)

Variables
struct m0_xcode_type *	m0_fi_command_req_xc = &_m0_fi_command_req._type
struct m0_xcode_type *	m0_fi_command_rep_xc = &_m0_fi_command_rep._type
static struct _m0_fi_command_req_s	_m0_fi_command_req
static struct _m0_fi_command_rep_s	_m0_fi_command_rep

Function Documentation

M0_BASSERT() [1/12]

M0_BASSERT

(

offsetof(struct _m0_fi_command_req_s, _child[0])

= =offsetof(struct m0_xcode_type, xct_child[0])

)

M0_BASSERT() [2/12]

M0_BASSERT

(

offsetof(struct _m0_fi_command_rep_s, _child[0])

= =offsetof(struct m0_xcode_type, xct_child[0])

)

M0_BASSERT() [3/12]

M0_BASSERT

(

sizeof(struct m0_fi_command_req)

= =48U

)

M0_BASSERT() [4/12]

M0_BASSERT

(

sizeof((struct m0_fi_command_req *) 0) ->

fcr_func = =16U

)

M0_BASSERT() [5/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_req, fcr_func)

= =0U

)

M0_BASSERT() [6/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_req, fcr_tag)

= =16U

)

M0_BASSERT() [7/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_req, fcr_disp)

= =32U

)

M0_BASSERT() [8/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_req, fcr_num1)

= =36U

)

M0_BASSERT() [9/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_req, fcr_num2)

= =40U

)

M0_BASSERT() [10/12]

M0_BASSERT

(

sizeof(struct m0_fi_command_rep)

= =4U

)

M0_BASSERT() [11/12]

M0_BASSERT

(

sizeof((struct m0_fi_command_rep *) 0) ->

fcp_rc = =4U

)

M0_BASSERT() [12/12]

M0_BASSERT

(

offsetof(struct m0_fi_command_rep, fcp_rc)

= =0U

)

m0_xc_fis_fi_command_fini()

M0_INTERNAL void m0_xc_fis_fi_command_fini

(

void

)

Definition at line 174 of file fi_command_xc.c.

m0_xc_fis_fi_command_init()

M0_INTERNAL void m0_xc_fis_fi_command_init

(

void

)

Definition at line 168 of file fi_command_xc.c.

Here is the call graph for this function:

m0_xc_m0_fi_command_rep_struct_init()

M0_INTERNAL void m0_xc_m0_fi_command_rep_struct_init

(

void

)

Definition at line 148 of file fi_command_xc.c.

Here is the call graph for this function:

Here is the caller graph for this function:

m0_xc_m0_fi_command_req_struct_init()

M0_INTERNAL void m0_xc_m0_fi_command_req_struct_init

(

void

)

Definition at line 68 of file fi_command_xc.c.

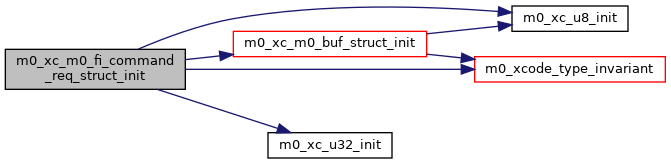

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

_m0_fi_command_rep

struct _m0_fi_command_rep_s _m0_fi_command_rep

static

Initial value:

= {
        ._type = {
                .xct_aggr   = M0_XA_RECORD,
                .xct_name   = "m0_fi_command_rep",
                .xct_sizeof = sizeof (struct m0_fi_command_rep),
                .xct_nr     = 1,
                .xct_flags  = M0_XCODE_TYPE_FLAG_DOM_RPC,
        }
}

_m0_fi_command_req

struct _m0_fi_command_req_s _m0_fi_command_req

static

Initial value:

= {
        ._type = {
                .xct_aggr   = M0_XA_RECORD,
                .xct_name   = "m0_fi_command_req",
                .xct_sizeof = sizeof (struct m0_fi_command_req),
                .xct_nr     = 5,
                .xct_flags  = M0_XCODE_TYPE_FLAG_DOM_RPC,
        }
}

m0_fi_command_rep_xc

struct m0_xcode_type * m0_fi_command_rep_xc = &_m0_fi_command_rep._type

Definition at line 11 of file fi_command_xc.c.

m0_fi_command_req_xc

struct m0_xcode_type * m0_fi_command_req_xc = &_m0_fi_command_req._type

Definition at line 10 of file fi_command_xc.c.
