onwire_xc.c File Reference
#include "lib/misc.h"#include "lib/assert.h"#include "xcode/xcode.h"#include "rpc/onwire.h"#include "rpc/onwire_xc.h"

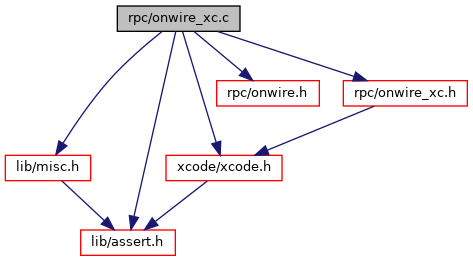

Include dependency graph for onwire_xc.c:
Go to the source code of this file.
Data Structures | |
| struct | _m0_rpc_packet_onwire_header_s |
| struct | _m0_rpc_packet_onwire_footer_s |
| struct | _m0_rpc_item_header1_s |
| struct | _m0_rpc_item_header2_s |
| struct | _m0_rpc_item_footer_s |
Variables | |
| struct m0_xcode_type * | m0_rpc_packet_onwire_header_xc = &_m0_rpc_packet_onwire_header._type |
| struct m0_xcode_type * | m0_rpc_packet_onwire_footer_xc = &_m0_rpc_packet_onwire_footer._type |
| struct m0_xcode_type * | m0_rpc_item_header1_xc = &_m0_rpc_item_header1._type |
| struct m0_xcode_type * | m0_rpc_item_header2_xc = &_m0_rpc_item_header2._type |
| struct m0_xcode_type * | m0_rpc_item_footer_xc = &_m0_rpc_item_footer._type |
| static struct _m0_rpc_packet_onwire_header_s | _m0_rpc_packet_onwire_header |
| static struct _m0_rpc_packet_onwire_footer_s | _m0_rpc_packet_onwire_footer |
| static struct _m0_rpc_item_header1_s | _m0_rpc_item_header1 |
| static struct _m0_rpc_item_header2_s | _m0_rpc_item_header2 |
| static struct _m0_rpc_item_footer_s | _m0_rpc_item_footer |
Function Documentation
◆ M0_BASSERT() [1/32]
| M0_BASSERT | ( | offsetof(struct _m0_rpc_packet_onwire_header_s, _child[0]) | = =offsetof(struct m0_xcode_type, xct_child[0]) | ) |
◆ M0_BASSERT() [2/32]
| M0_BASSERT | ( | offsetof(struct _m0_rpc_packet_onwire_footer_s, _child[0]) | = =offsetof(struct m0_xcode_type, xct_child[0]) | ) |
◆ M0_BASSERT() [3/32]
| M0_BASSERT | ( | offsetof(struct _m0_rpc_item_header1_s, _child[0]) | = =offsetof(struct m0_xcode_type, xct_child[0]) | ) |
◆ M0_BASSERT() [4/32]
| M0_BASSERT | ( | offsetof(struct _m0_rpc_item_header2_s, _child[0]) | = =offsetof(struct m0_xcode_type, xct_child[0]) | ) |
◆ M0_BASSERT() [5/32]
| M0_BASSERT | ( | offsetof(struct _m0_rpc_item_footer_s, _child[0]) | = =offsetof(struct m0_xcode_type, xct_child[0]) | ) |
◆ M0_BASSERT() [6/32]
| M0_BASSERT | ( | sizeof(struct m0_rpc_packet_onwire_header) | = =32U | ) |
◆ M0_BASSERT() [7/32]
| M0_BASSERT | ( | sizeof((struct m0_rpc_packet_onwire_header *) 0) -> | poh_header = =16U | ) |
◆ M0_BASSERT() [8/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_packet_onwire_header, poh_header) | = =0U | ) |
◆ M0_BASSERT() [9/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_packet_onwire_header, poh_version) | = =16U | ) |
◆ M0_BASSERT() [10/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_packet_onwire_header, poh_nr_items) | = =20U | ) |
◆ M0_BASSERT() [11/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_packet_onwire_header, poh_magic) | = =24U | ) |
◆ M0_BASSERT() [12/32]
| M0_BASSERT | ( | sizeof(struct m0_rpc_packet_onwire_footer) | = =16U | ) |
◆ M0_BASSERT() [13/32]
| M0_BASSERT | ( | sizeof((struct m0_rpc_packet_onwire_footer *) 0) -> | pof_footer = =16U | ) |
◆ M0_BASSERT() [14/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_packet_onwire_footer, pof_footer) | = =0U | ) |
◆ M0_BASSERT() [15/32]
| M0_BASSERT | ( | sizeof(struct m0_rpc_item_header1) | = =40U | ) |
◆ M0_BASSERT() [16/32]
| M0_BASSERT | ( | sizeof((struct m0_rpc_item_header1 *) 0) -> | ioh_header = =16U | ) |
◆ M0_BASSERT() [17/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header1, ioh_header) | = =0U | ) |
◆ M0_BASSERT() [18/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header1, ioh_opcode) | = =16U | ) |
◆ M0_BASSERT() [19/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header1, ioh_flags) | = =20U | ) |
◆ M0_BASSERT() [20/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header1, ioh_ha_epoch) | = =24U | ) |
◆ M0_BASSERT() [21/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header1, ioh_magic) | = =32U | ) |
◆ M0_BASSERT() [22/32]
| M0_BASSERT | ( | sizeof(struct m0_rpc_item_header2) | = =64U | ) |
◆ M0_BASSERT() [23/32]
| M0_BASSERT | ( | sizeof((struct m0_rpc_item_header2 *) 0) -> | osr_uuid = =16U | ) |
◆ M0_BASSERT() [24/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_uuid) | = =0U | ) |
◆ M0_BASSERT() [25/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_sender_id) | = =16U | ) |
◆ M0_BASSERT() [26/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_session_id) | = =24U | ) |
◆ M0_BASSERT() [27/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_session_xid_min) | = =32U | ) |
◆ M0_BASSERT() [28/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_xid) | = =40U | ) |
◆ M0_BASSERT() [29/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_header2, osr_cookie) | = =48U | ) |
◆ M0_BASSERT() [30/32]
| M0_BASSERT | ( | sizeof(struct m0_rpc_item_footer) | = =16U | ) |
◆ M0_BASSERT() [31/32]
| M0_BASSERT | ( | sizeof((struct m0_rpc_item_footer *) 0) -> | iof_footer = =16U | ) |
◆ M0_BASSERT() [32/32]
| M0_BASSERT | ( | offsetof(struct m0_rpc_item_footer, iof_footer) | = =0U | ) |
◆ m0_xc_m0_rpc_item_footer_struct_init()
| M0_INTERNAL void m0_xc_m0_rpc_item_footer_struct_init | ( | void | ) |
Definition at line 413 of file onwire_xc.c.
Here is the call graph for this function:
Here is the caller graph for this function:
◆ m0_xc_m0_rpc_item_header1_struct_init()
| M0_INTERNAL void m0_xc_m0_rpc_item_header1_struct_init | ( | void | ) |
Definition at line 238 of file onwire_xc.c.

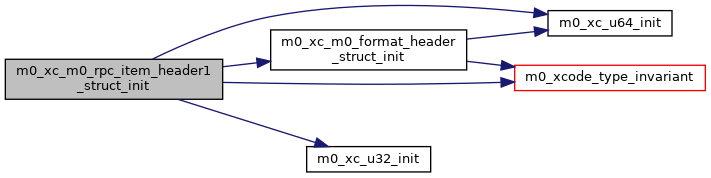

Here is the call graph for this function:
Here is the caller graph for this function:
◆ m0_xc_m0_rpc_item_header2_struct_init()
| M0_INTERNAL void m0_xc_m0_rpc_item_header2_struct_init | ( | void | ) |
Definition at line 318 of file onwire_xc.c.

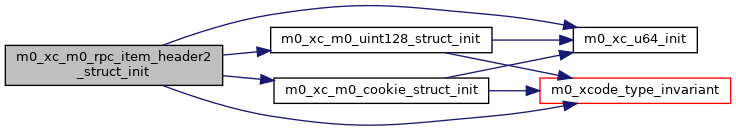

Here is the call graph for this function:
Here is the caller graph for this function:
◆ m0_xc_m0_rpc_packet_onwire_footer_struct_init()
| M0_INTERNAL void m0_xc_m0_rpc_packet_onwire_footer_struct_init | ( | void | ) |
Definition at line 218 of file onwire_xc.c.
Here is the call graph for this function:
Here is the caller graph for this function:
◆ m0_xc_m0_rpc_packet_onwire_header_struct_init()
| M0_INTERNAL void m0_xc_m0_rpc_packet_onwire_header_struct_init | ( | void | ) |
Definition at line 153 of file onwire_xc.c.

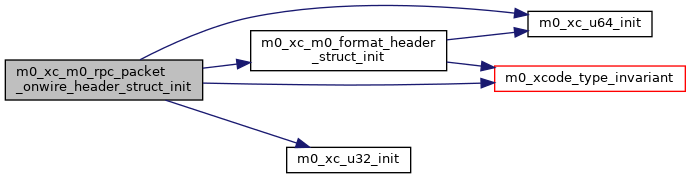

Here is the call graph for this function:
Here is the caller graph for this function:
◆ m0_xc_rpc_onwire_fini()
| M0_INTERNAL void m0_xc_rpc_onwire_fini | ( | void | ) |
Definition at line 442 of file onwire_xc.c.
◆ m0_xc_rpc_onwire_init()
| M0_INTERNAL void m0_xc_rpc_onwire_init | ( | void | ) |
Variable Documentation
◆ _m0_rpc_item_footer
|
static |
Initial value:
= {
._type = {
.xct_aggr = M0_XA_RECORD,
.xct_name = "m0_rpc_item_footer",
.xct_nr = 1,
.xct_flags = M0_XCODE_TYPE_FLAG_DOM_RPC,
}
}
Definition: xcode.h:169
Definition: xcode.h:304
◆ _m0_rpc_item_header1
|
static |
Initial value:
= {
._type = {
.xct_aggr = M0_XA_RECORD,
.xct_name = "m0_rpc_item_header1",
.xct_nr = 5,
.xct_flags = M0_XCODE_TYPE_FLAG_DOM_RPC,
}
}
Definition: onwire.h:83
Definition: xcode.h:169
Definition: xcode.h:304
◆ _m0_rpc_item_header2
|
static |
Initial value:
= {
._type = {
.xct_aggr = M0_XA_RECORD,
.xct_name = "m0_rpc_item_header2",
.xct_nr = 6,
.xct_flags = M0_XCODE_TYPE_FLAG_DOM_RPC,
}
}
Definition: xcode.h:169
Definition: onwire.h:94
Definition: xcode.h:304
◆ _m0_rpc_packet_onwire_footer
|
static |
Initial value:
= {
._type = {
.xct_aggr = M0_XA_RECORD,
.xct_name = "m0_rpc_packet_onwire_footer",
.xct_nr = 1,
.xct_flags = M0_XCODE_TYPE_FLAG_DOM_RPC,
}
}
Definition: xcode.h:169
Definition: xcode.h:304
◆ _m0_rpc_packet_onwire_header
|
static |
Initial value:
= {
._type = {
.xct_aggr = M0_XA_RECORD,
.xct_name = "m0_rpc_packet_onwire_header",
.xct_nr = 4,
.xct_flags = M0_XCODE_TYPE_FLAG_DOM_RPC,
}
}
Definition: onwire.h:70
Definition: xcode.h:169
Definition: xcode.h:304
◆ m0_rpc_item_footer_xc
| struct m0_xcode_type * m0_rpc_item_footer_xc = &_m0_rpc_item_footer._type |
Definition at line 14 of file onwire_xc.c.
◆ m0_rpc_item_header1_xc
| struct m0_xcode_type * m0_rpc_item_header1_xc = &_m0_rpc_item_header1._type |
Definition at line 12 of file onwire_xc.c.
◆ m0_rpc_item_header2_xc
| struct m0_xcode_type * m0_rpc_item_header2_xc = &_m0_rpc_item_header2._type |
Definition at line 13 of file onwire_xc.c.
◆ m0_rpc_packet_onwire_footer_xc
| struct m0_xcode_type * m0_rpc_packet_onwire_footer_xc = &_m0_rpc_packet_onwire_footer._type |
Definition at line 11 of file onwire_xc.c.
◆ m0_rpc_packet_onwire_header_xc
| struct m0_xcode_type * m0_rpc_packet_onwire_header_xc = &_m0_rpc_packet_onwire_header._type |
Definition at line 10 of file onwire_xc.c.
