#include <reqh_service.h>

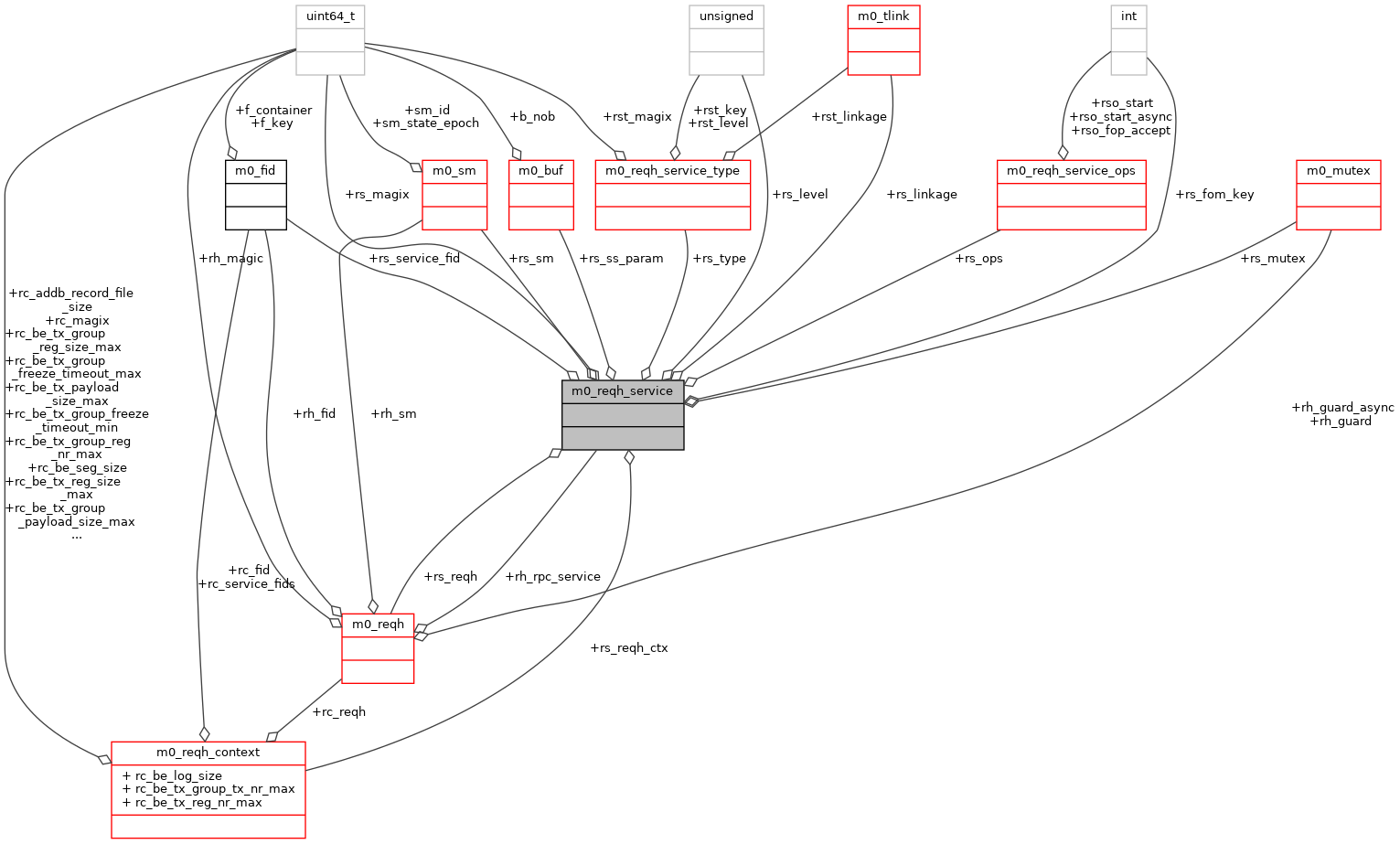

Collaboration diagram for m0_reqh_service:

Data Fields
struct m0_fid	rs_service_fid

const struct m0_reqh_service_type *	rs_type

unsigned	rs_level

int	rs_fom_key

struct m0_sm	rs_sm

struct m0_mutex	rs_mutex

const struct m0_reqh_service_ops *	rs_ops

struct m0_reqh *	rs_reqh

struct m0_tlink	rs_linkage

struct m0_reqh_context *	rs_reqh_ctx

struct m0_buf	rs_ss_param

uint64_t	rs_magix

Detailed Description

Represents a service on node. Multiple services in a motr address space share the same request handler. There exist a list of services in struct m0_reqh, m0_reqh::rh_services, sharing the same request handler.

Definition at line 217 of file reqh_service.h.

Field Documentation

◆ rs_fom_key

int rs_fom_key

Key for per-locality-per-svc fom count.

Definition at line 239 of file reqh_service.h.

◆ rs_level

unsigned rs_level

Same type of services may have different levels to manage their cleanup order. If this level is 0 during service creation, m0_reqh_service_type::rst_level is copied by m0_reqh_service_allocate().

Definition at line 237 of file reqh_service.h.

◆ rs_linkage

struct m0_tlink rs_linkage

Linkage into list of services in request handler.

See also: m0_reqh::rh_services

Definition at line 267 of file reqh_service.h.

◆ rs_magix

uint64_t rs_magix

Service magic to check consistency of service instance.

Definition at line 287 of file reqh_service.h.

◆ rs_mutex

struct m0_mutex rs_mutex

Protects service state transitions.

Definition at line 250 of file reqh_service.h.

◆ rs_ops

const struct m0_reqh_service_ops* rs_ops

Service specific operations vector.

Definition at line 255 of file reqh_service.h.

◆ rs_reqh

struct m0_reqh* rs_reqh

Request handler this service belongs to.

Definition at line 260 of file reqh_service.h.

◆ rs_reqh_ctx

struct m0_reqh_context* rs_reqh_ctx

service context

Definition at line 272 of file reqh_service.h.

◆ rs_service_fid

struct m0_fid rs_service_fid

Service id that should be unique throughout the cluster.

Definition at line 221 of file reqh_service.h.

◆ rs_sm

struct m0_sm rs_sm

Service state machine.

See also: m0_reqh_service_state

Definition at line 245 of file reqh_service.h.

◆ rs_ss_param

struct m0_buf rs_ss_param

The parameter specifying whatever information the service needs to start up.

Currently this buffer is interpreted by confd_start().

See also: m0_sssservice_req::ss_param

Definition at line 282 of file reqh_service.h.

◆ rs_type

const struct m0_reqh_service_type* rs_type

Service type specific structure to hold service specific implementations of its operations. This can be used to initialise service specific objects such as fops.

Definition at line 228 of file reqh_service.h.

The documentation for this struct was generated from the following file:

reqh/reqh_service.h
